"MIGHTY MAGSHIEL" is a magnetic drive stirring seal that keeps the flask airtight.
It is a product that can be used in a wide range of fields such as pharmaceuticals, foods, and fine chemicals.

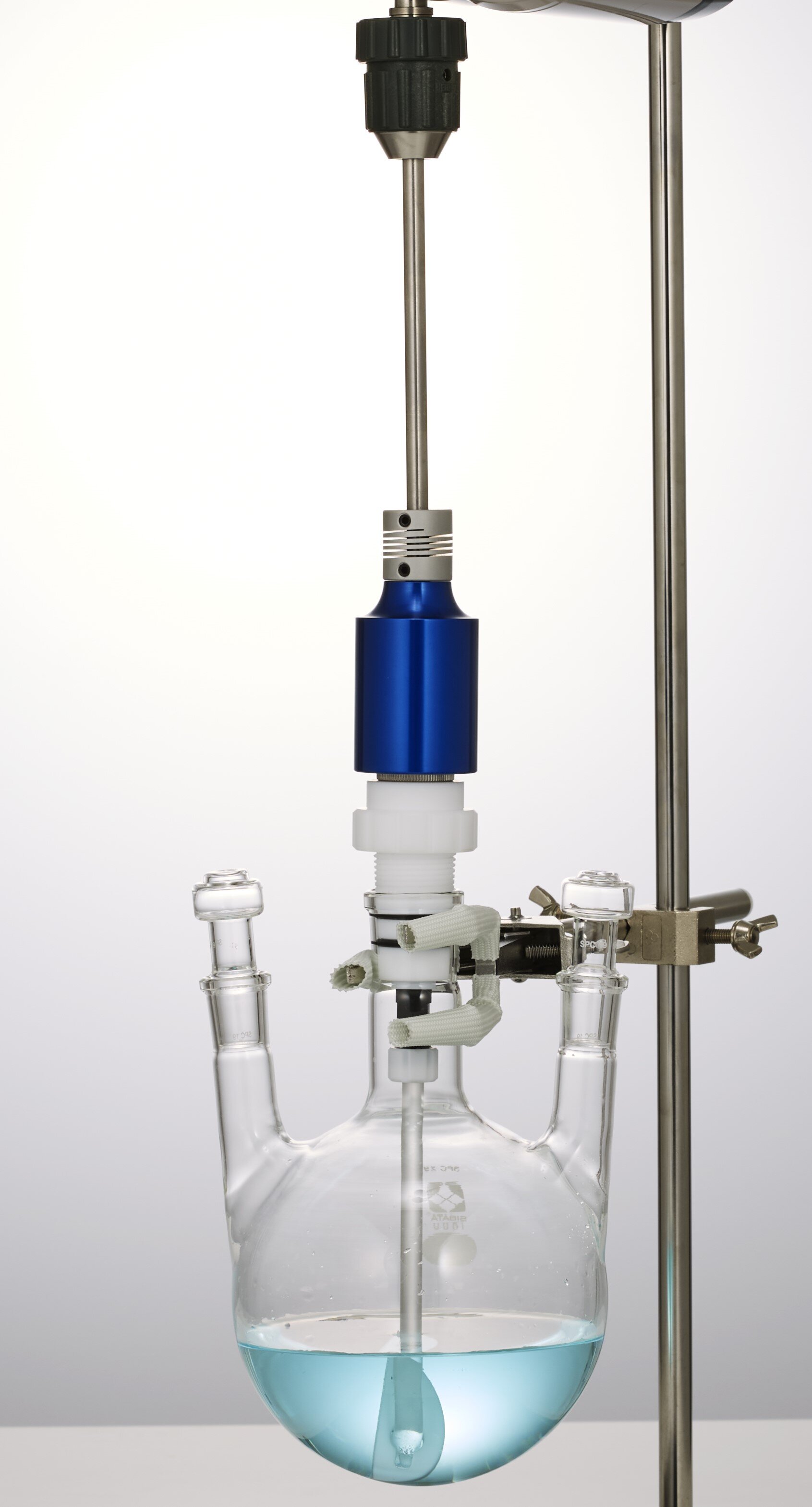

It provide safety and airtight mixing by inserting into ground joint of flask and connecting with general overhead stirrer.
We have achieved high vacuum and high durability by magnetic coupling, and have been supporting your research for over 40 years since its launch in 1984.

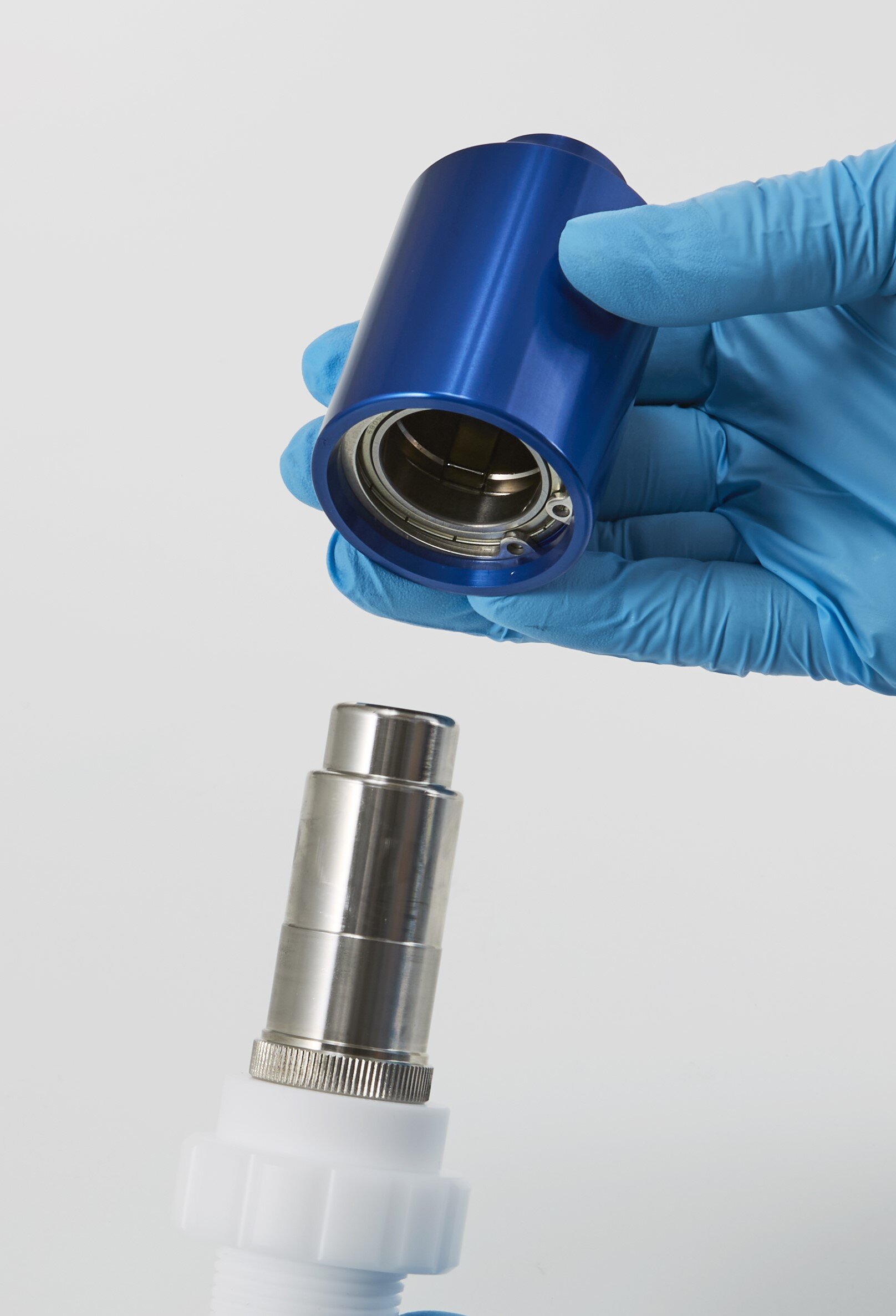

The magnetic contactless coupling keeps airtightness inside flasks.
It enhances safety and reliability by avoiding leakage of solvents and gases. Less-wearing and easy of maintenance.
Two models are available depend on Max. rotational torque.
In addition, we also offer different sizes of ground joint for each model.

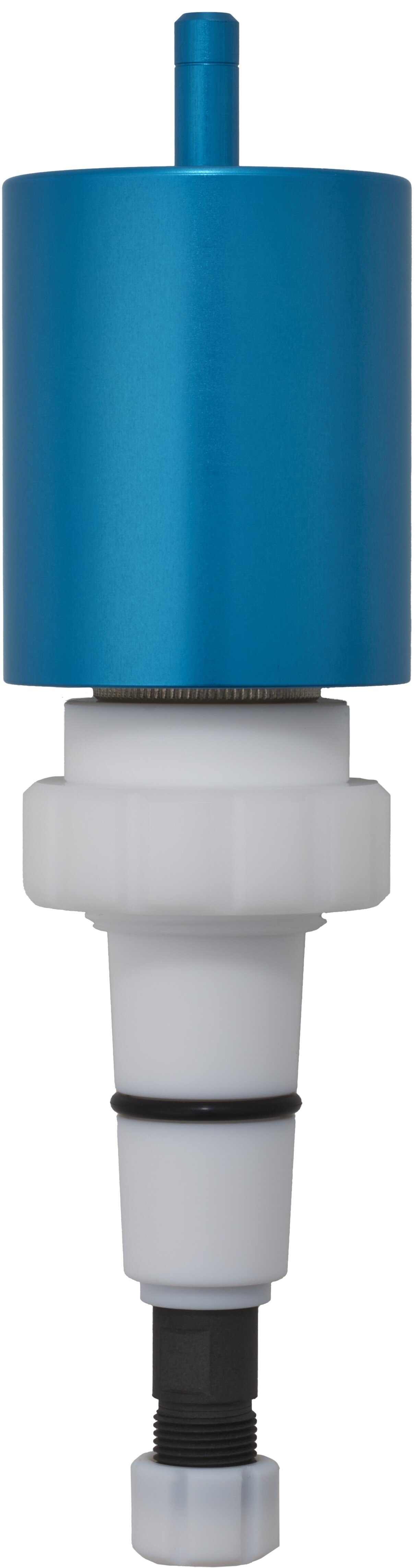

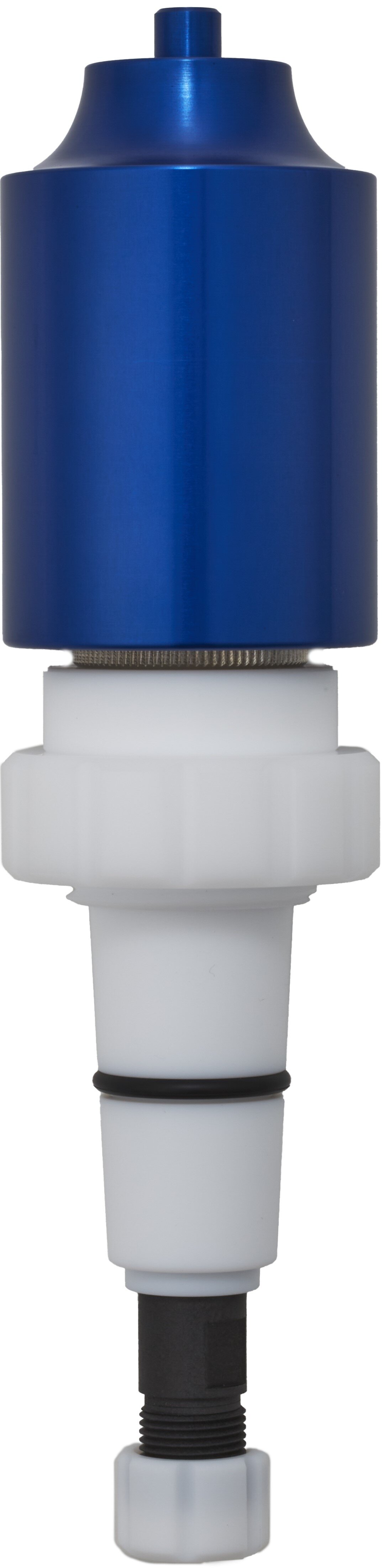

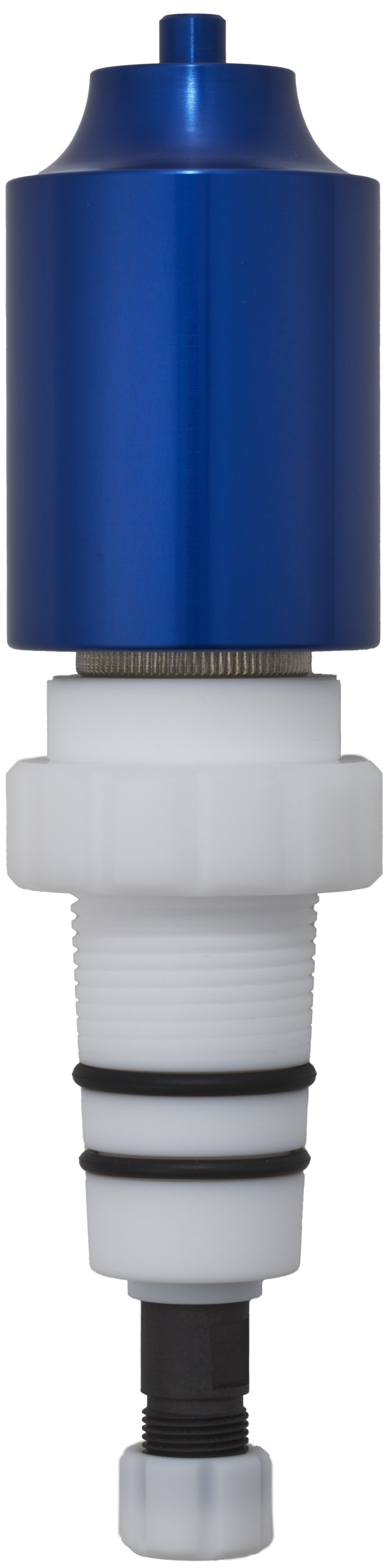

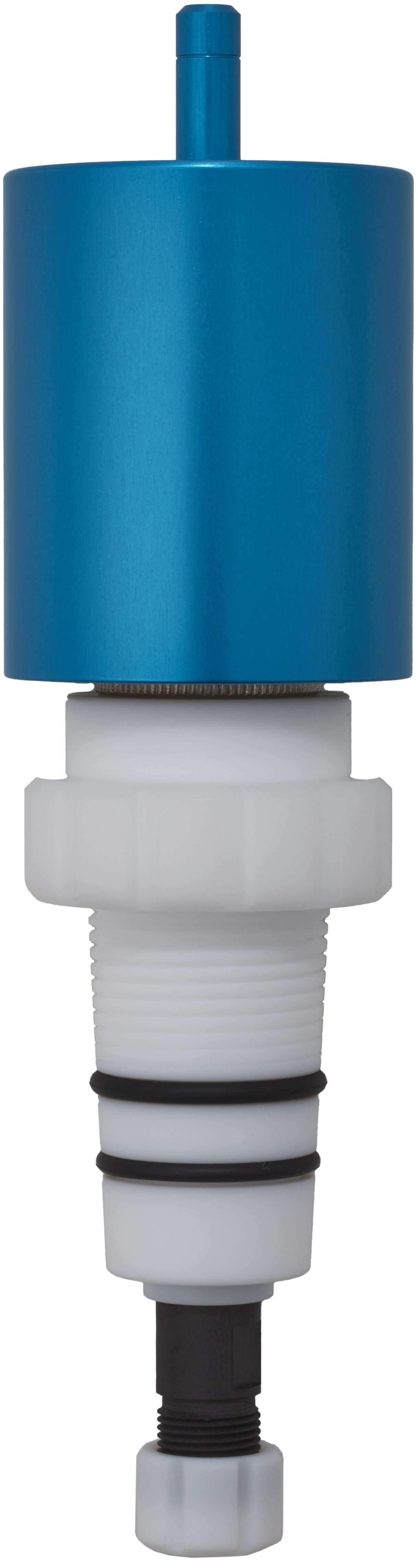

| Product No. | MG-6-01R-2 | MG-6-02R-2 | MG-2-01R-2 | MG-2-02R-2 |
|---|---|---|---|---|
| Photo |
|
|
|
|
| Max. rotational torque | 0.6N･m | 0.2N･m | ||
| Joint size | 24/40 | 29/42 | 24/40 | 29/42 |
| Weight: approx. | 510g | 530g | 610g | 630g |
| Stirring rod dia. | φ8 | |||
| Vacuum tolerance | 10-3Pa | |||

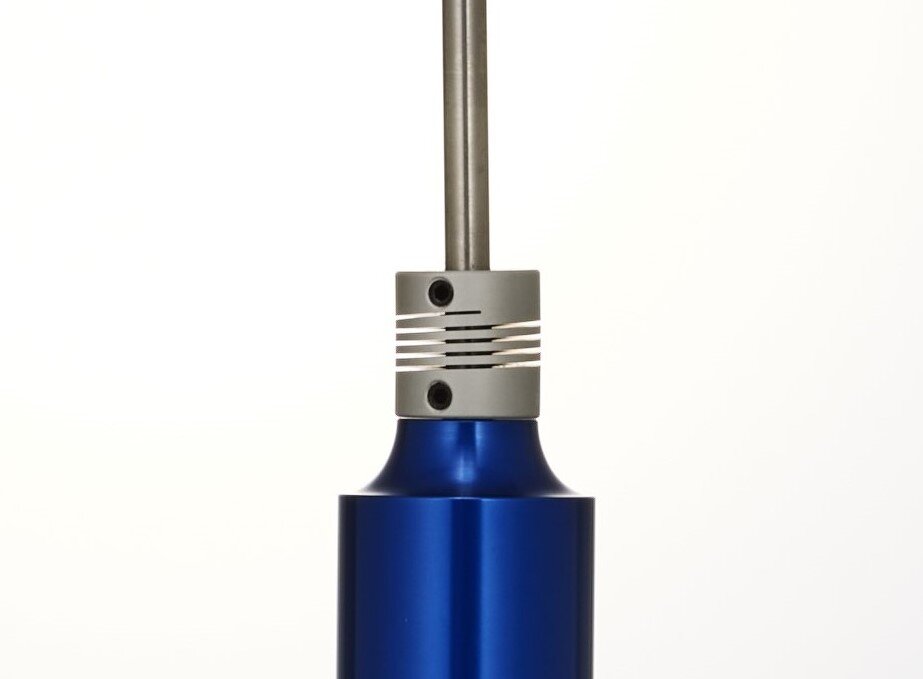

It absorbs misalignment of shaft by attaching between shaft of stirrer and MIGHTY MAGSHIEL

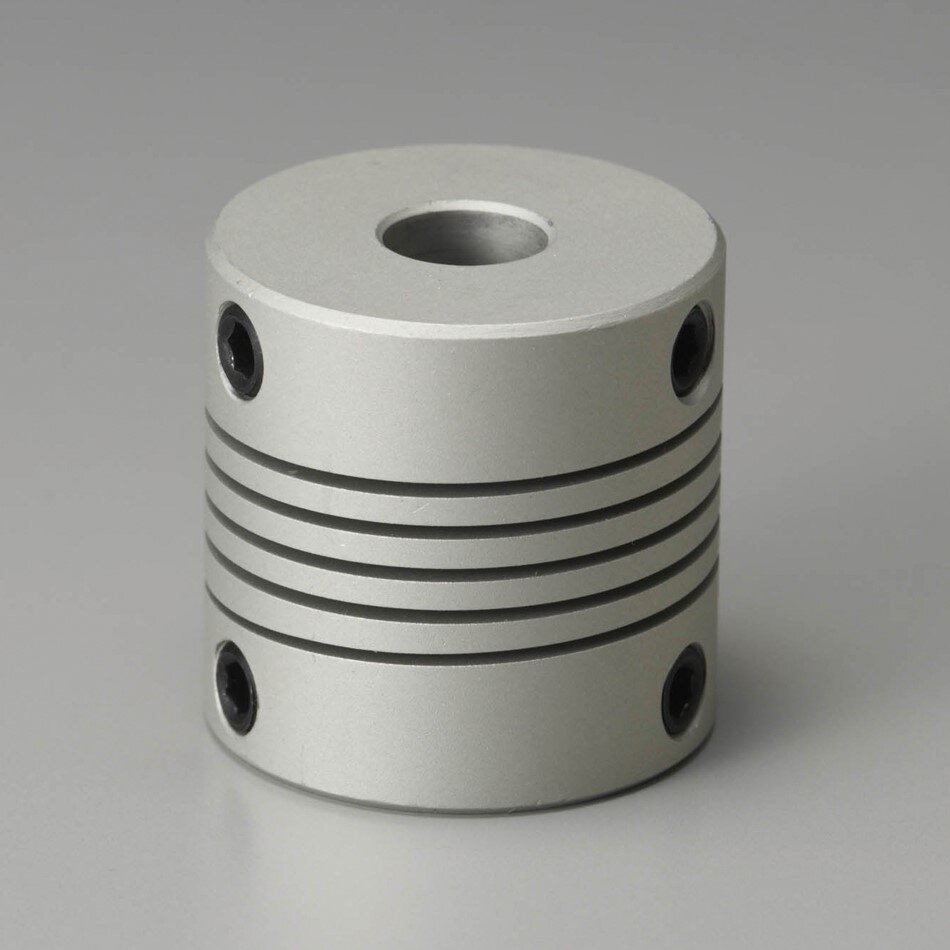

MG-0-01 Helical coupling φ8
