Using a newly developed high-loadable stirring rod prevents the rod from slipping.
High temperature and long operation will be stabilized.

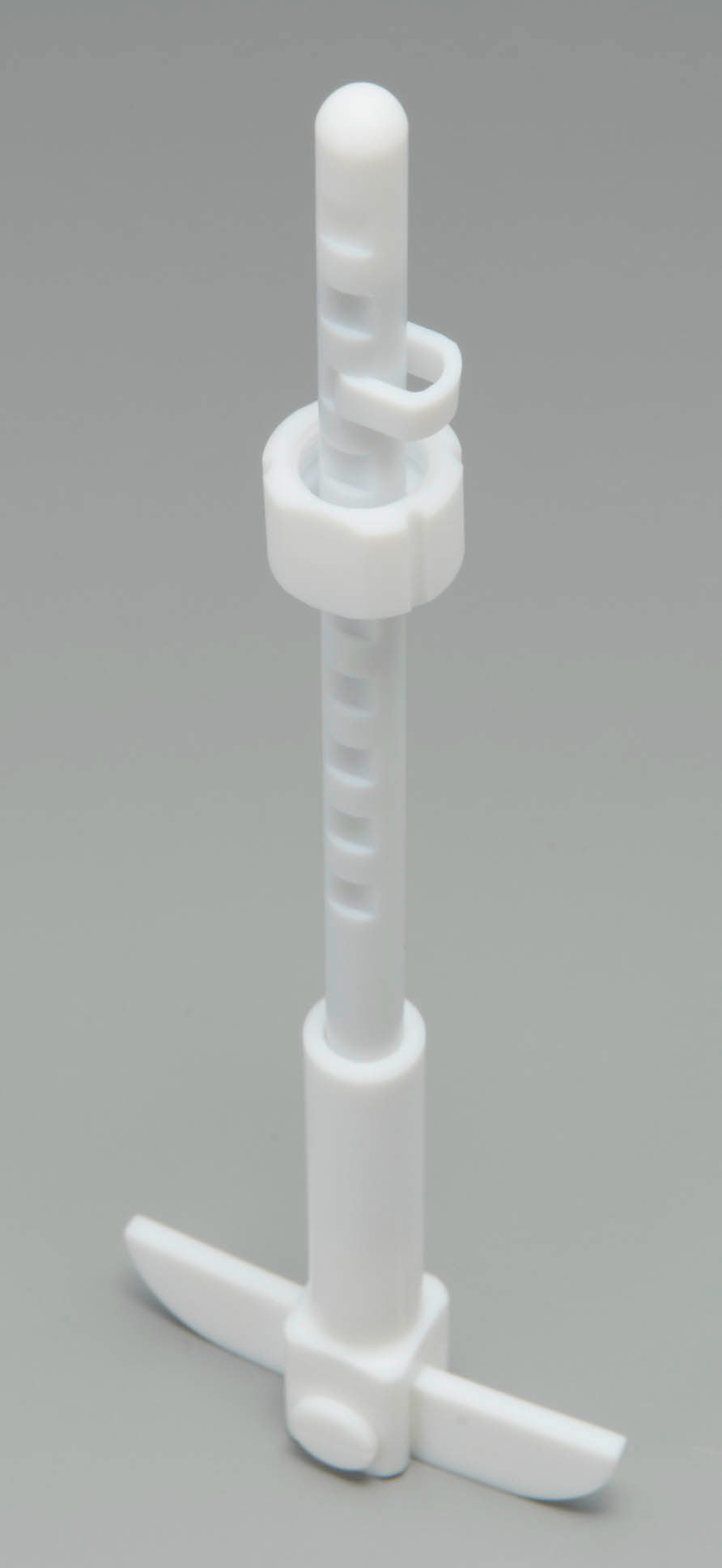

To use a high loadable stirring rod, a special installation parts (HS-1-01) is required.

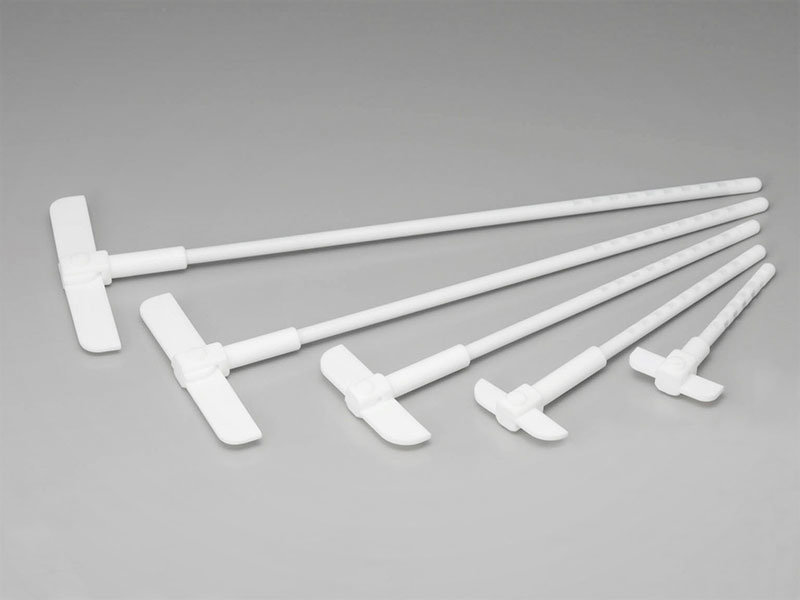

High loadable PTEE stirring rod
Description

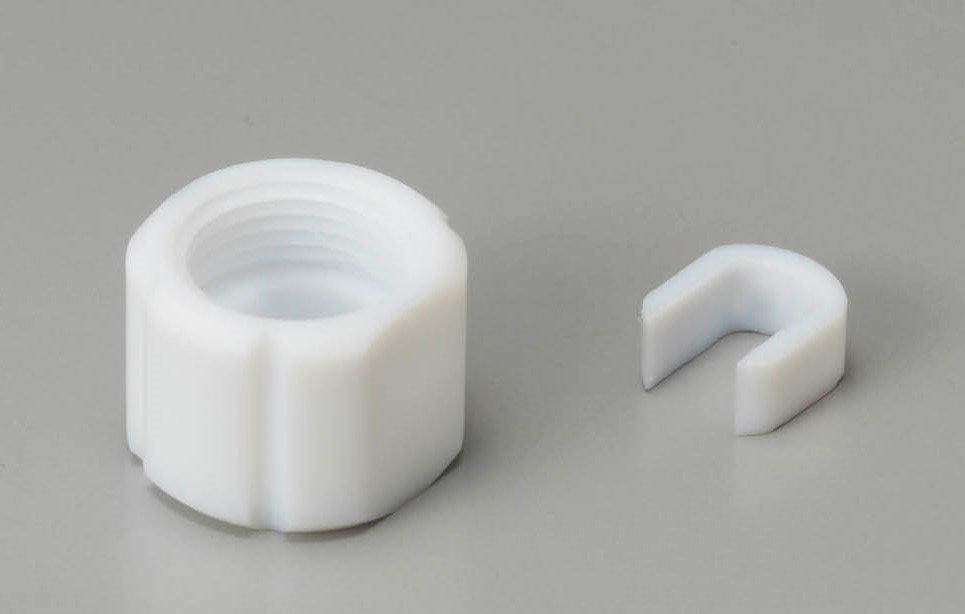

HS-1-01 High loadable PTFE stirring rod installation parts(cap, stopper)
Product features

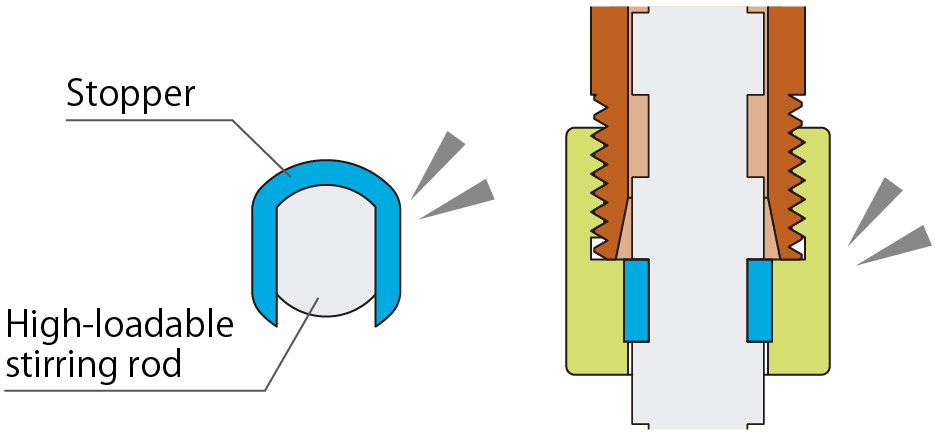

U-shaped stopper firmly holds the stirring rod.
It prevents the stirring rod from slipping.
Reliable long operation can be provided since the rod is secure while mixing.
Specification

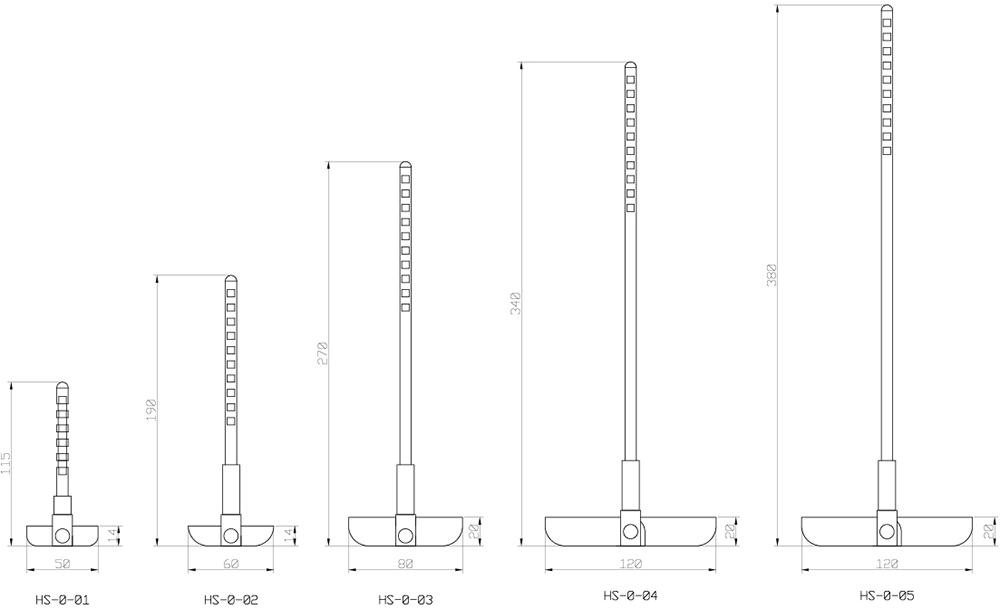

Replacement parts for High loadable PTFE stirring rod
| Product No. | Product Name |
|---|---|
| HS-0-01 | High loadable PTEE stirring rod 110 mm（For 200～500mL Flask） |
| HS-0-02 | High loadable PTEE stirring rod 175mm（For 500mL～1L Flask） |
| HS-0-03 | High loadable PTEE stirring rod 250mm（For 2～3L Flask） |
| HS-0-04 | High loadable PTEE stirring rod 320mm（For 5L Flask） |
| HS-0-05 | High loadable PTEE stirring rod 360mm（For 10L Flask） |
| HS-1-01 | High loadable PTFE stirring rod installation parts(cap, stopper) |

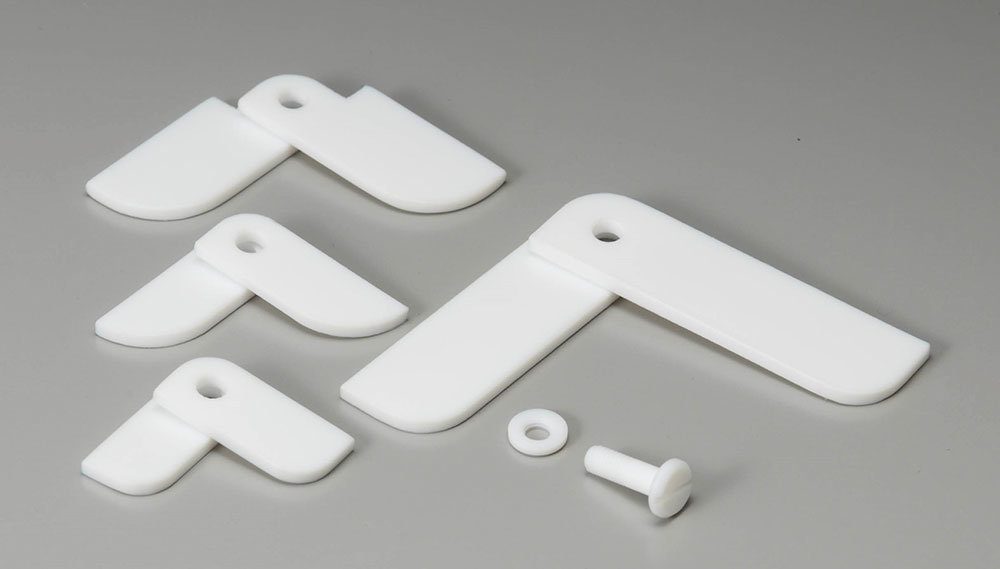

| Product No. | Product Name |
|---|---|
| HS-2-01 | HS-2-01 PTFE impeller 3tx50mm （one couple of blade） |
| HS-2-02 | HS-2-02 PTFE impeller 3tx60mm （one couple of blade） |
| HS-2-03 | HS-2-03 PTFE impeller 3tx80mm （one couple of blade） |
| HS-2-04 | HS-2-04 PTFE impeller 3tx120mm （one couple of blade） |
| HS-2-05 | HS-2-05 PTFE impeller fixing screw set |
