Detach and cleaning is possible with keeping convenience of "High-loadable PTFE stirring rod".
Frequent maintenance prevent troubles by contamination
To use a high loadable stirring rod, a special installation parts (HS-1-01) is required.

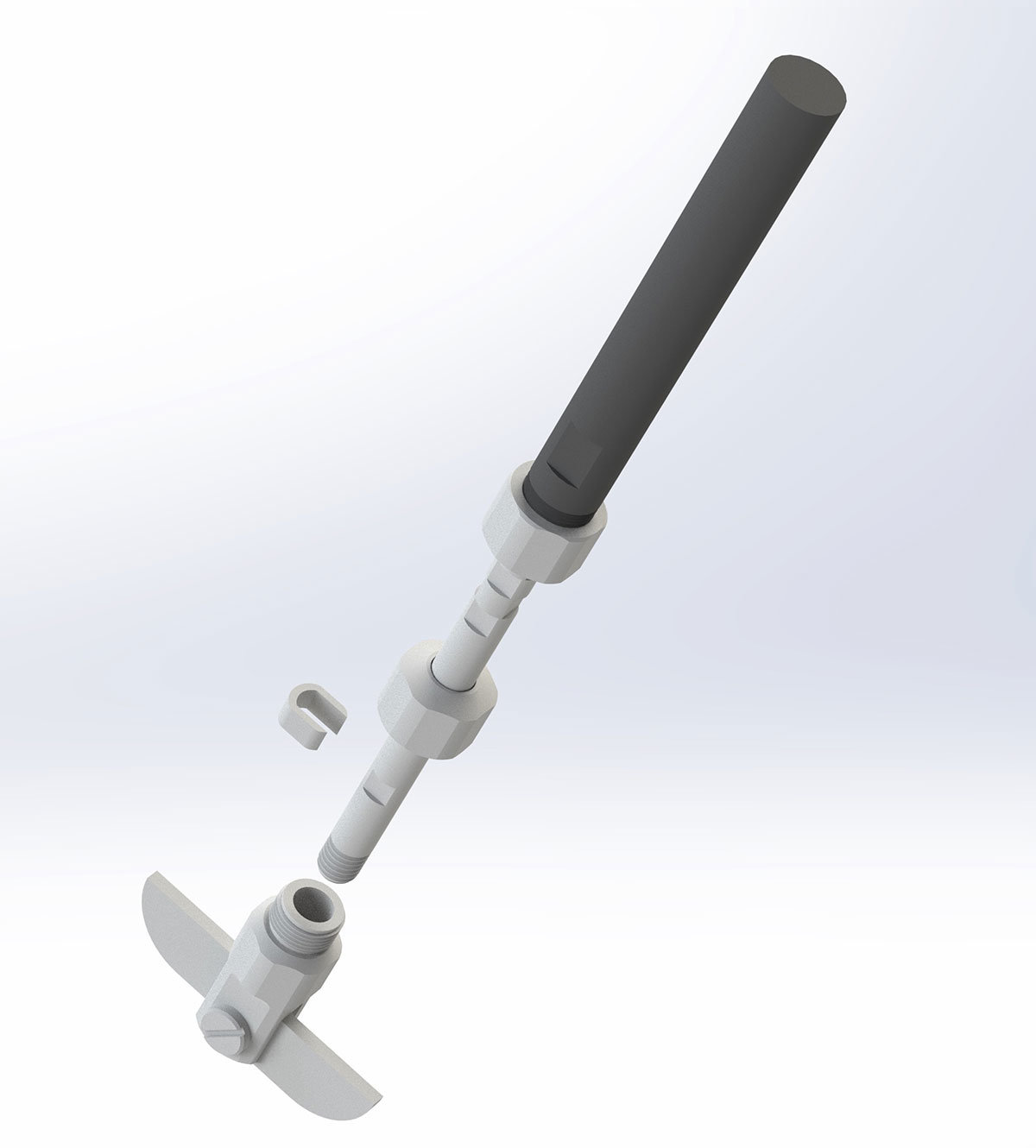

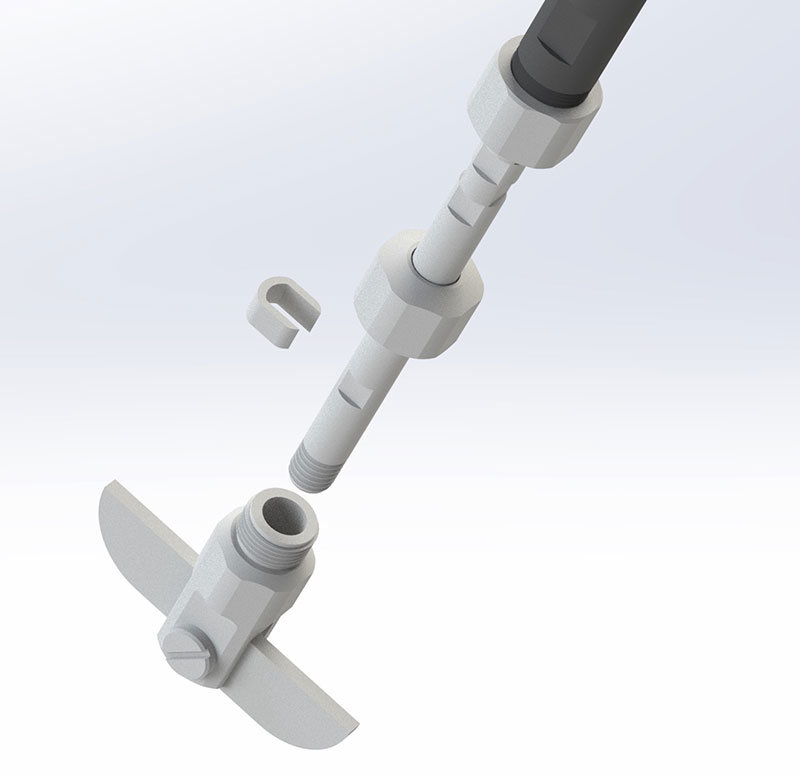

High loadable PTEE stirring rod Sprit type
Description

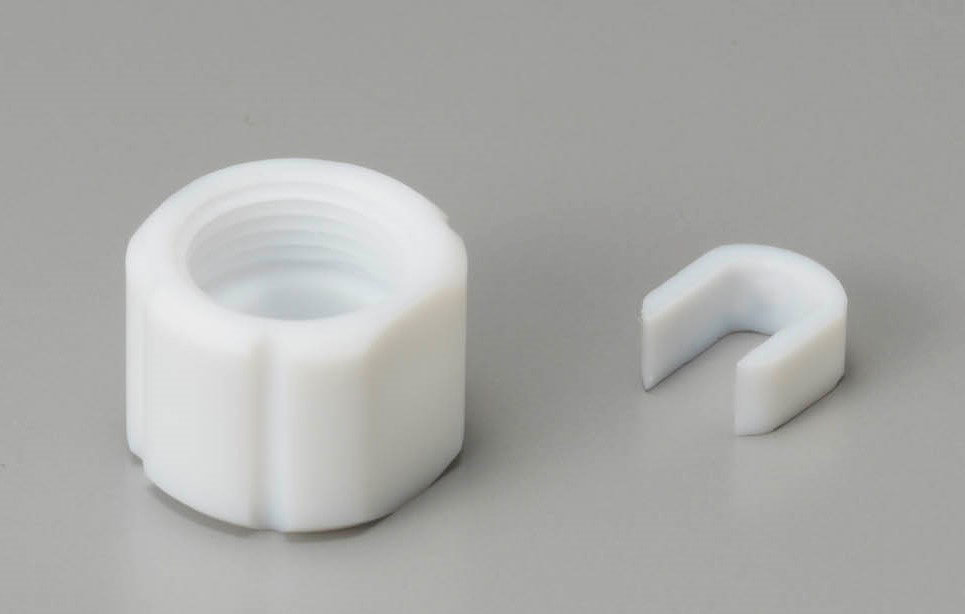

HS-1-01 High loadable PTFE stirring rod installation parts(cap, stopper)
Product features

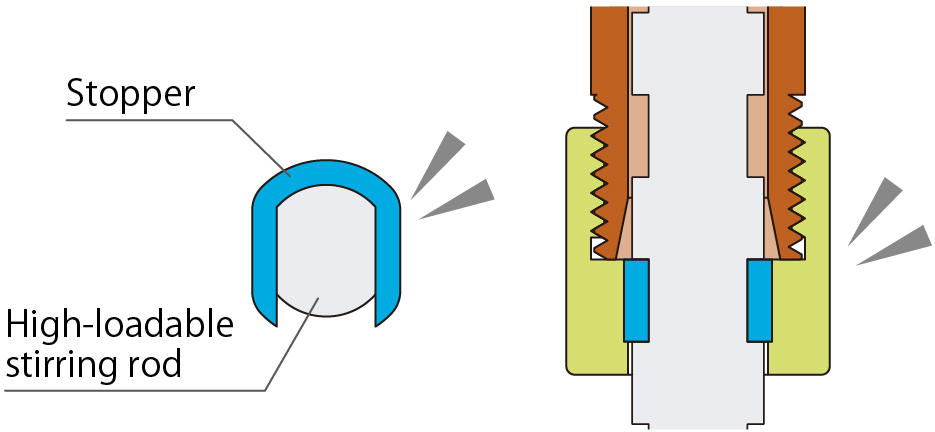

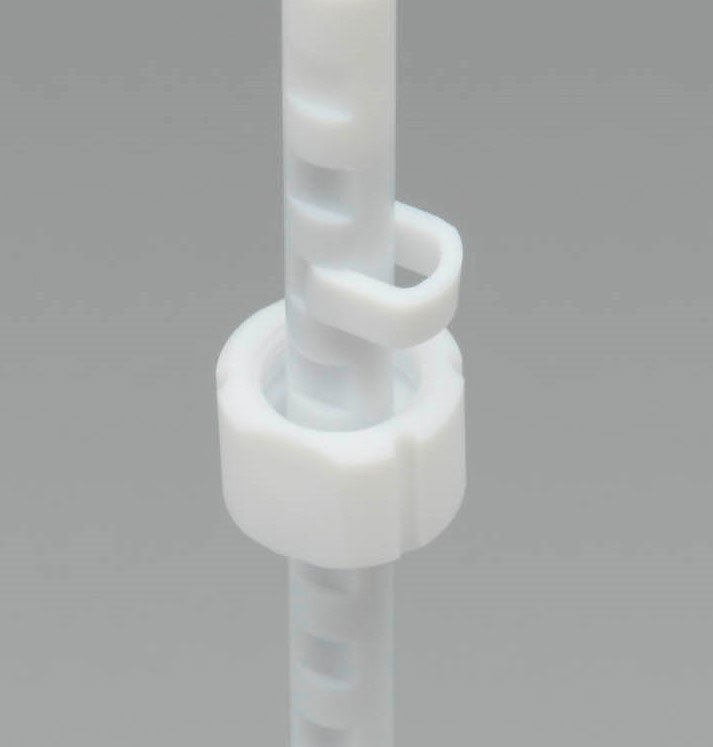

U-shaped stopper firmly holds the stirring rod.
It prevents the stirring rod from slipping.
Reliable long operation can be provided since the rod is secure while mixing.
Specification

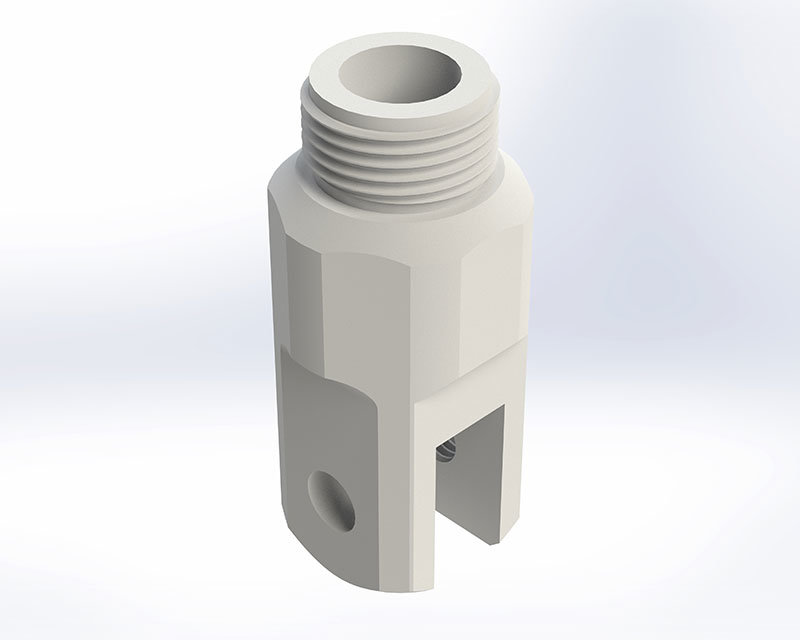

Stirring head
Replacement parts for High loadable PTFE stirring rod
| Product No. | Product Name |
|---|---|
| HS-0-01S | High-loadable PTFE shaft (correspond to HS-0-01) |
| HS-0-02S | High-loadable PTFE shaft (correspond to HS-0-02) |
| HS-0-03S | High-loadable PTFE shaft (correspond to HS-0-03) |
| HS-0-04S | High-loadable PTFE shaft (correspond to HS-0-04) |
| HS-0-XH1 | Stirring head （for HS-0-01S, 02S, 03S) |
| HS-0-XH2 | Stirring head （for HS-0-04S) |
| HS-1-01 | High loadable PTFE stirring rod installation parts(cap, stopper) |
| Product No. | Product Name |
|---|---|

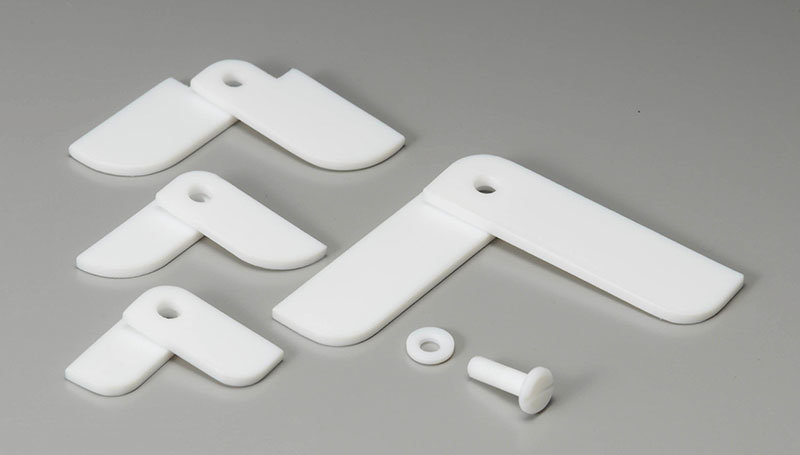

| HS-2-01 | HS-2-01 PTFE impeller 3tx50mm （one couple of blade） |
| HS-2-02 | HS-2-02 PTFE impeller 3tx60mm （one couple of blade） |
| HS-2-03 | HS-2-03 PTFE impeller 3tx80mm （one couple of blade） |
| HS-2-04 | HS-2-04 PTFE impeller 3tx120mm （one couple of blade） |
| HS-2-05 | HS-2-05 PTFE impeller fixing screw set |
